In vitro transcription using bacteriophage DNA-dependent RNA polymerases has become an almost indispensable tool in molecular biological research. Enzymes like bacteriophage SP6, T3 and T7 RNA polymerases have been used to produce synthetic RNA for a wide variety of applications (1)
. In the field of RNA viruses, particularly for positive-stranded RNA viruses, the generation of full-length in vitro transcripts from cloned cDNA represents one of the most common strategies to produce synthetic RNA virus genomes (6)
. Reverse genetics systems have been established based upon the synthesis of full-length “infectious” RNA in vitro. However, for RNA viruses with extremely large genomes, the generation of synthetic genome-length RNA is still a challenging task. We have shown for coronaviruses, which have the largest genome of all RNA viruses (27–32kb), that infectious in vitro transcripts can be obtained using the T7 RiboMAX™ Large Scale RNA Production System (Cat.# P1300) (7)
. Here we report the synthesis of a 27.3kb RNA representing the human coronavirus (HCoV) genomic RNA in as little as 10 minutes using the T7 RiboMAX™ Express Large Scale RNA Production System (Cat.# P1320).
The DNA Template
We studied the ability of the T7 RiboMAX™ Express Large Scale RNA Production System to generate long RNA transcripts. We then used our recently described reverse genetics system for the generation of recombinant HCoV (7), based upon the synthesis of in vitro transcribed RNA from a full-length HCoV cDNA cloned in a vaccinia virus vector. The template for in vitro transcription is derived from genomic DNA of a recombinant vaccinia virus, vHCoV-inf-1. This virus contains the full-length HCoV cDNA of 27.3kb cloned downstream of a bacteriophage T7 RNA polymerase promoter and one additional G nucleotide to facilitate initiation of transcription. The HCoV cDNA is terminated by a synthetic polyA sequence of 42 nucleotides and a ClaI restriction site (Figure 1). Template DNA for in vitro transcription was prepared from purified vaccinia virus vHCoV-inf-1 stocks by proteinase K treatment, phenol extraction and ethanol precipitation. In order to produce run-off transcripts genomic vaccinia virus vHCoV-inf-1 DNA was cleaved with ClaI, followed by phenol extraction and ethanol precipitation. The integrity of the ClaI-digested template DNA was analyzed by agarose gel electrophoresis (Figure 2).

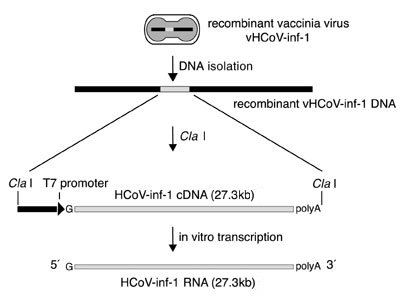

Figure 1. Schematic representation of the preparation of vaccinia virus vHCoV-inf-1-derived template DNA and in vitro transcript.
In Vitro Transcription
In vitro transcription reactions were performed according to the manufacturer's instructions in the T7 RiboMAX™ Express Large Scale RNA Production System Technical Bulletin (#TB298) in a 20µl reaction containing the following: 10µl of RiboMAX™ Express T7 2X Buffer, 6µl of nuclease-free water, 2µl of ClaI-digested template DNA (250ng/µl) and 2µl of Enzyme Mix. Note that the genomic DNA of vHCoV-inf-1 has a size of about 210kb compared to the HCoV-inf-1 cDNA insert of 27.3kb, which is the actual transcribed target sequence. Thus, only about 13% of the vHCoV-inf-1 genome represents the functional template DNA. In vitro transcription reactions were incubated at 37°C for time periods of 10 minutes to 2 hours.
After adding 1U of RQ1 RNase-free DNase to the reaction and incubating at 37°C for 15 minutes, the RNA was precipitated by adding 30µl of nuclease-free water and 25µl of LiCl solution (7.5M lithium chloride, 50µM EDTA). The reaction was chilled for at least 30 minutes at –20°C and centrifuged (maximum speed in a microcentrifuge at 4°C for 15 minutes). The resulting RNA pellet was washed with 70% ethanol, dried and resuspended in 1mM sodium citrate (pH 6.4).

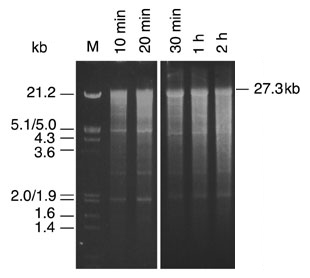

For each reaction we determined the total yield of in vitro transcripts and analyzed the RNA by agarose gel electrophoresis (Figures 3 and 4). Surprisingly, full-length transcripts became apparent after only 10 minutes incubation (Figure 4, lane 2). Under these conditions, the total yield was 8µg. Using longer incubation times the total yield of synthesized RNA increased up to 78µg. Full-length transcripts are easily detectable as the predominant RNA when reactions were incubated for 30 minutes, 1 hour and 2 hours (Figure 4, lanes 4–6). The RNA yields were 35µg, 50µg and 78µg, respectively. Overall, our data demonstrate the ability of the T7 RiboMAX™ Express Large Scale RNA Production System to mediate the synthesis of 27.3kb in vitro transcripts in quantitative amounts within short periods of time.
